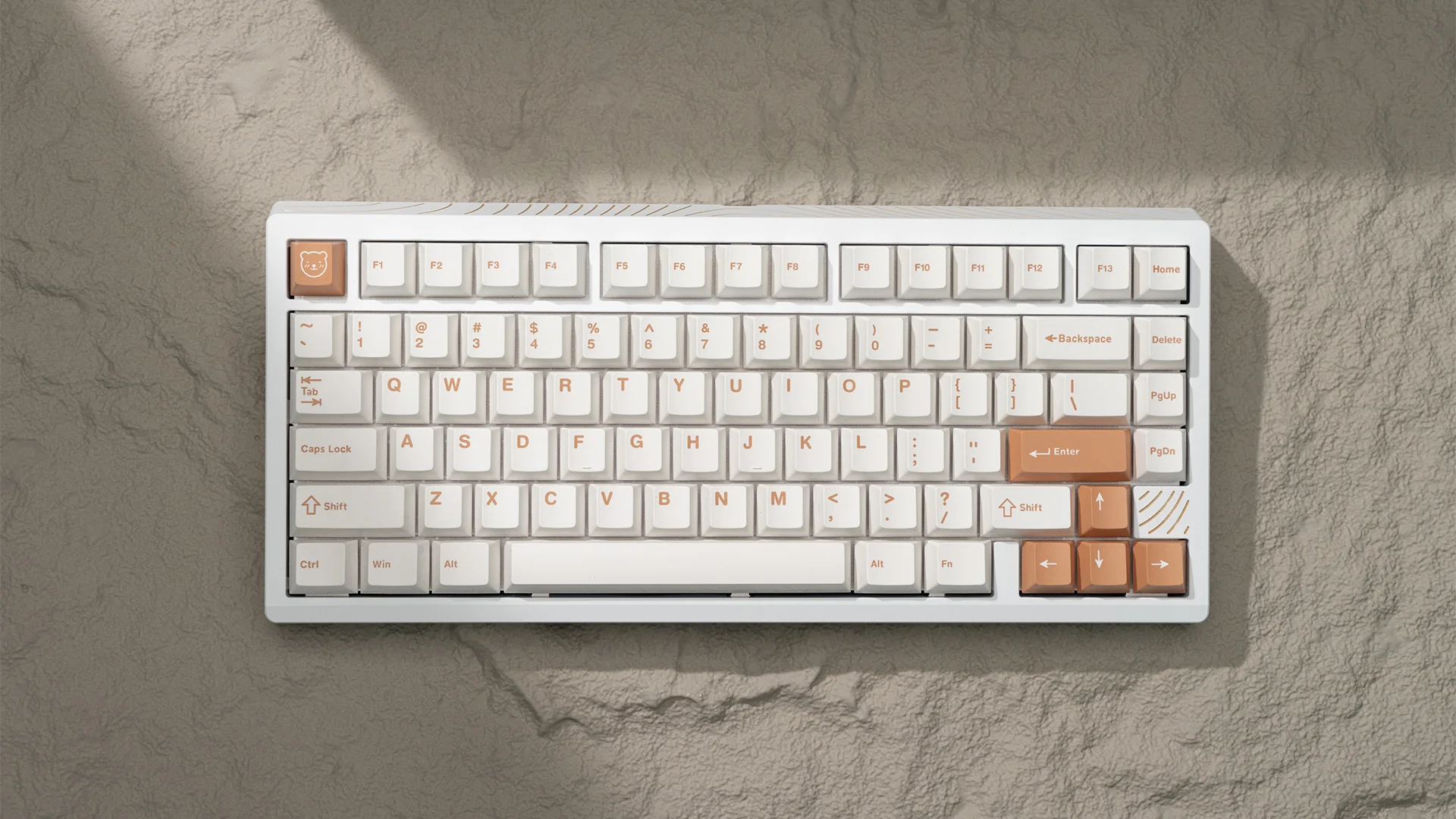

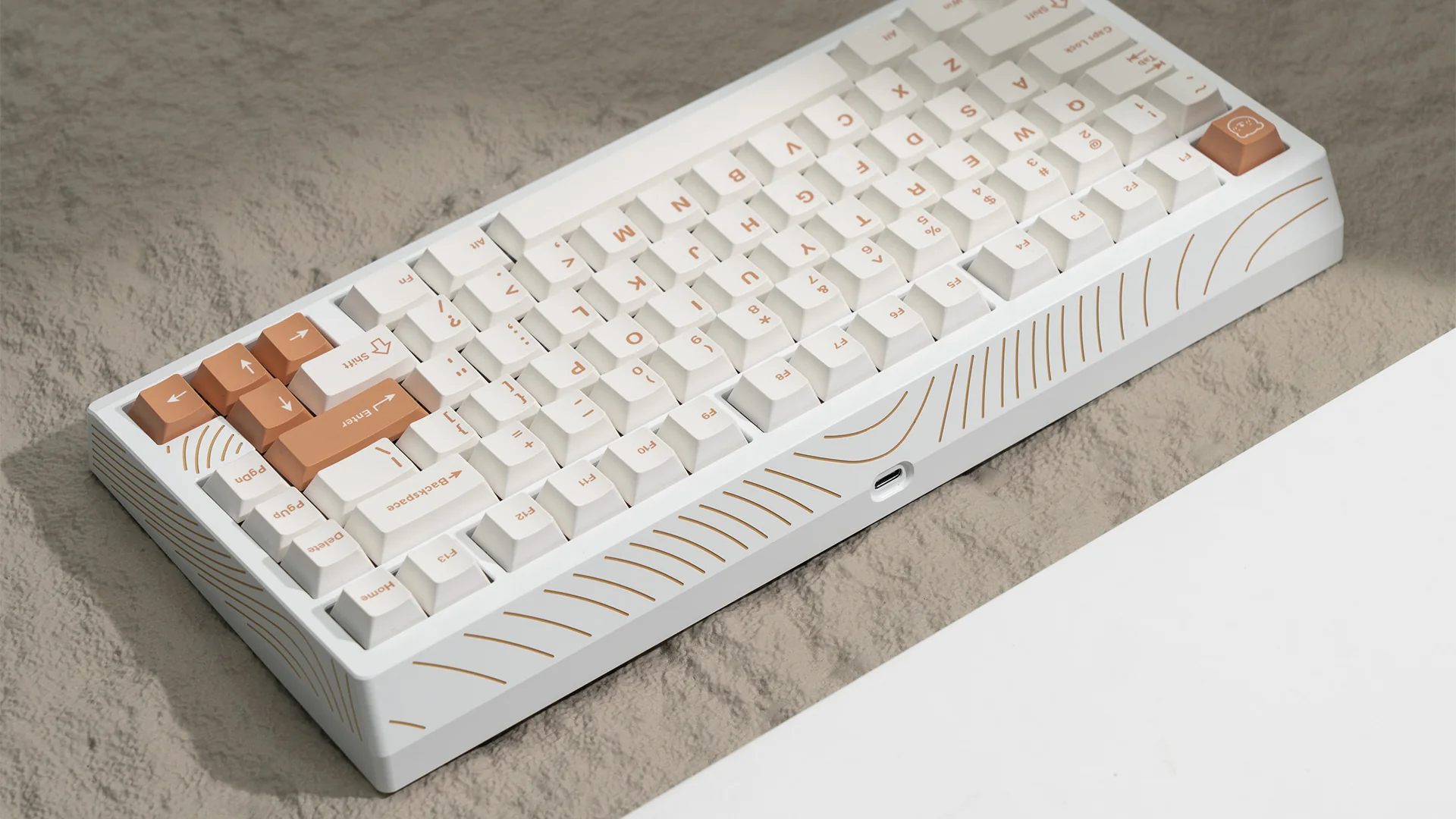

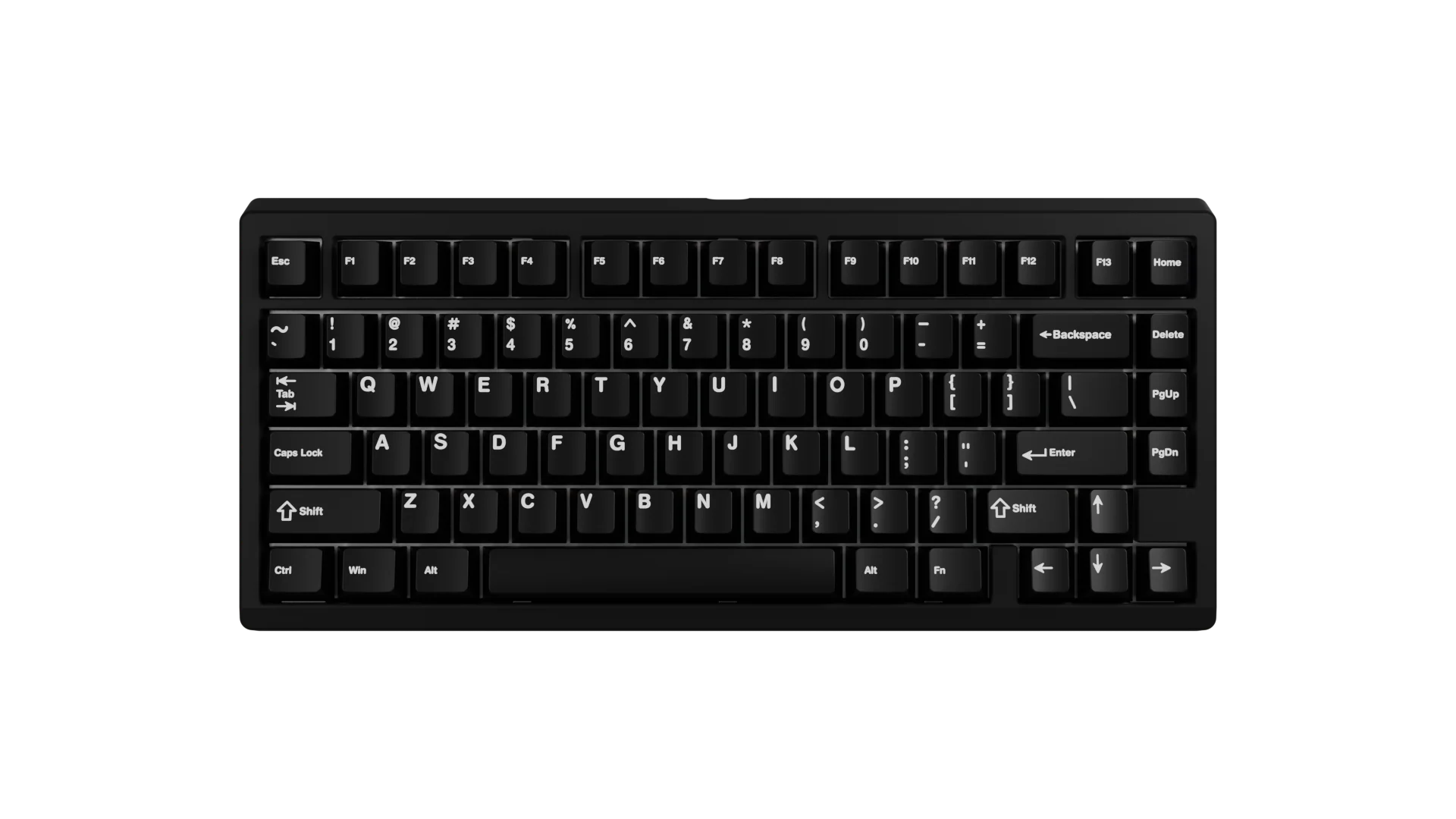

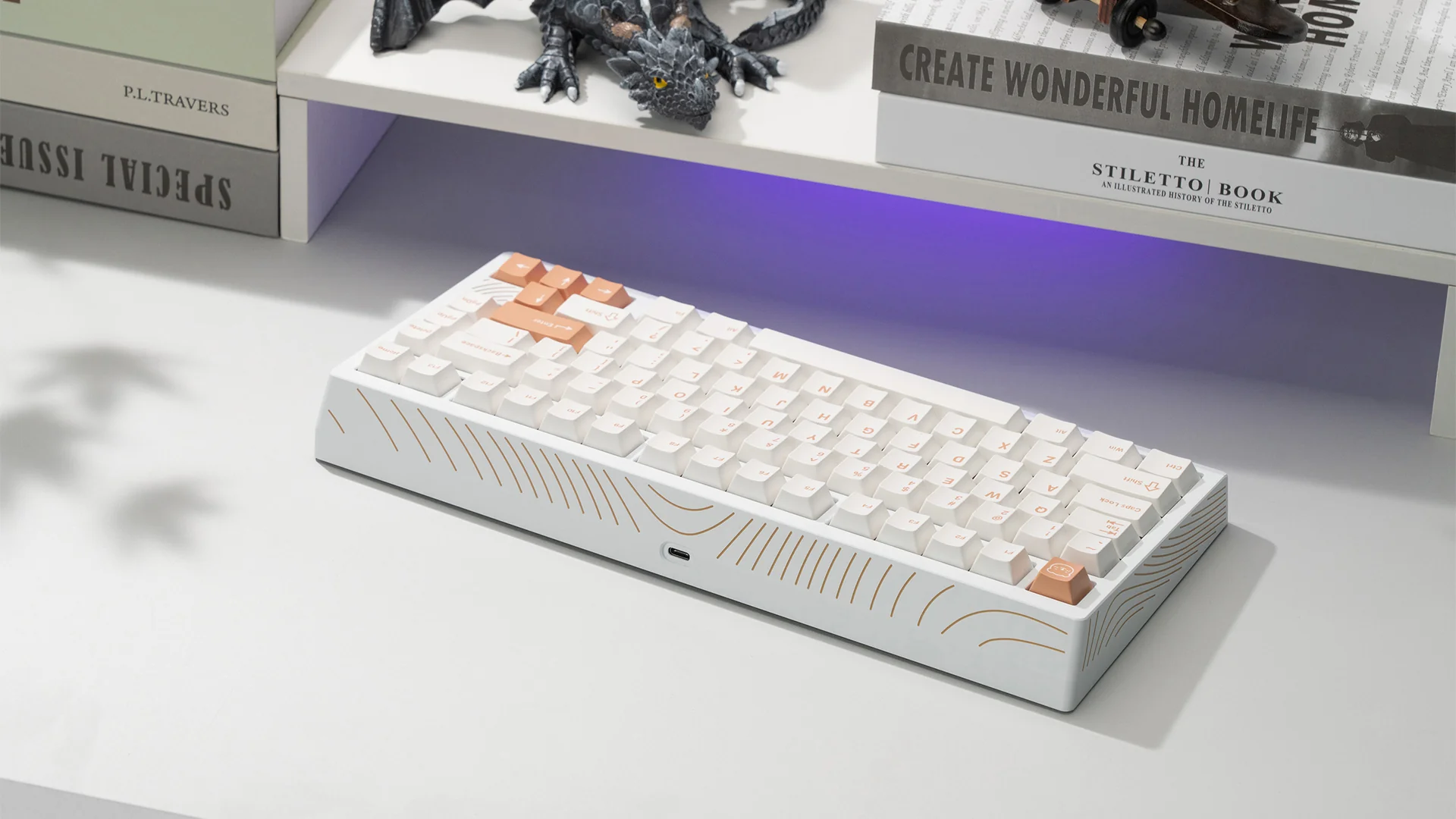

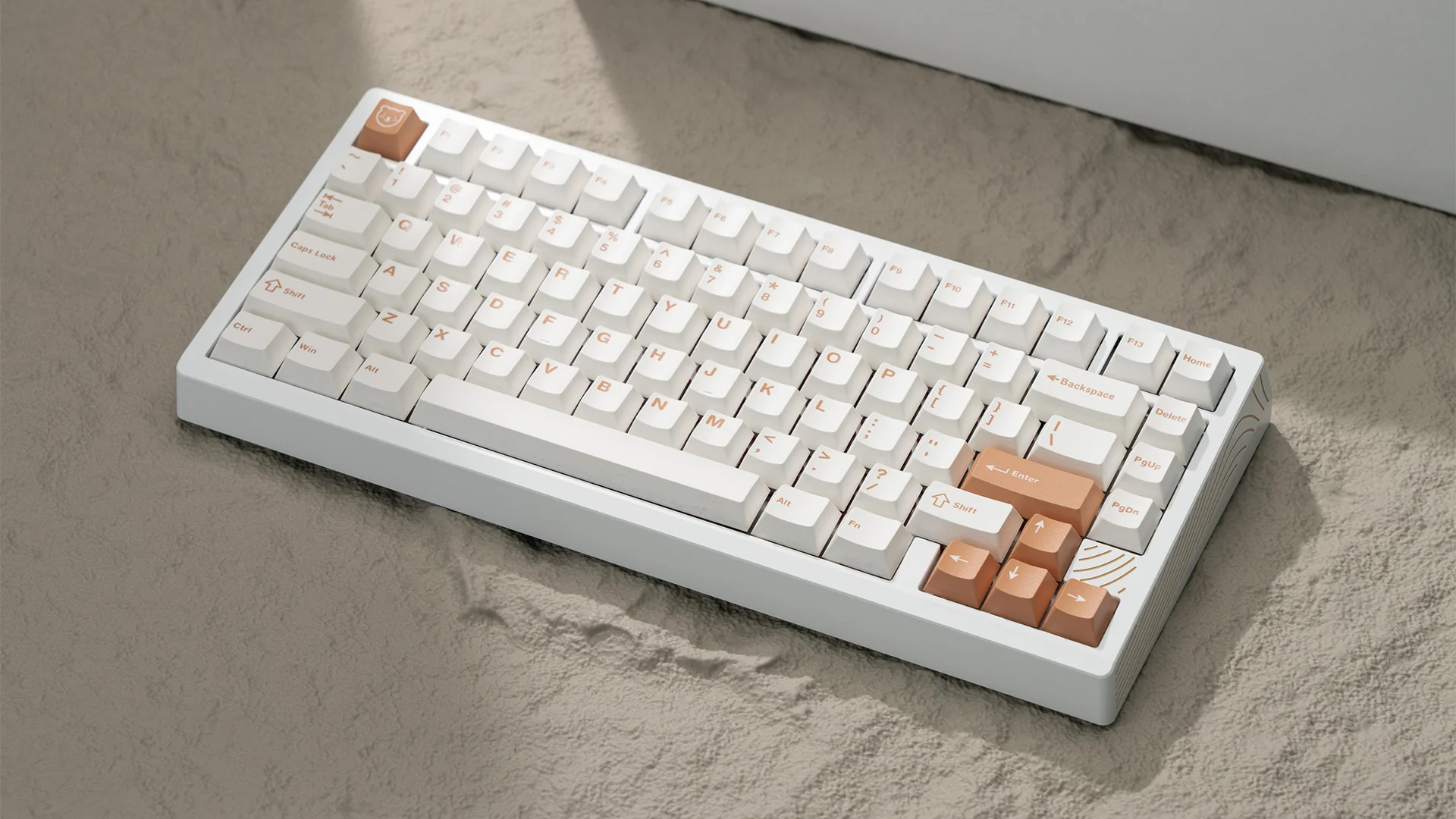

BOOG75 Prebuilt

Keyboard Specifications:

• Wired
• Gasket Mount Design
• 75% Layout
• PCB: 1.6mm, with Ai03 DB
• 5° Typing angle
• 22.14 mm front height
• Dimension: 323.6 x 145.78 x 34.73 (mm)
• Default plate: Alu
• Case Material: 6063 Aluminum
• Case Finish: Anodized+Infill (No Sparkles, No Chamfer)
• Backplate and External Weight: Anodized+Infill
• Switches Type: Gateron KS37B, compatible with Gateron KS37, GATERON Magnetic FOX Switch, GATERON Dual-rail Magnetic Jade Mini E Switch
• The Orientation of the Switches: North Facing
• No SS Internal Weight
• Boog 75 Wired Polling Rate: 1000hz
• QMK or VIA Support: No, customization requires to use of our independent driver.

• Total weight: About 3kg

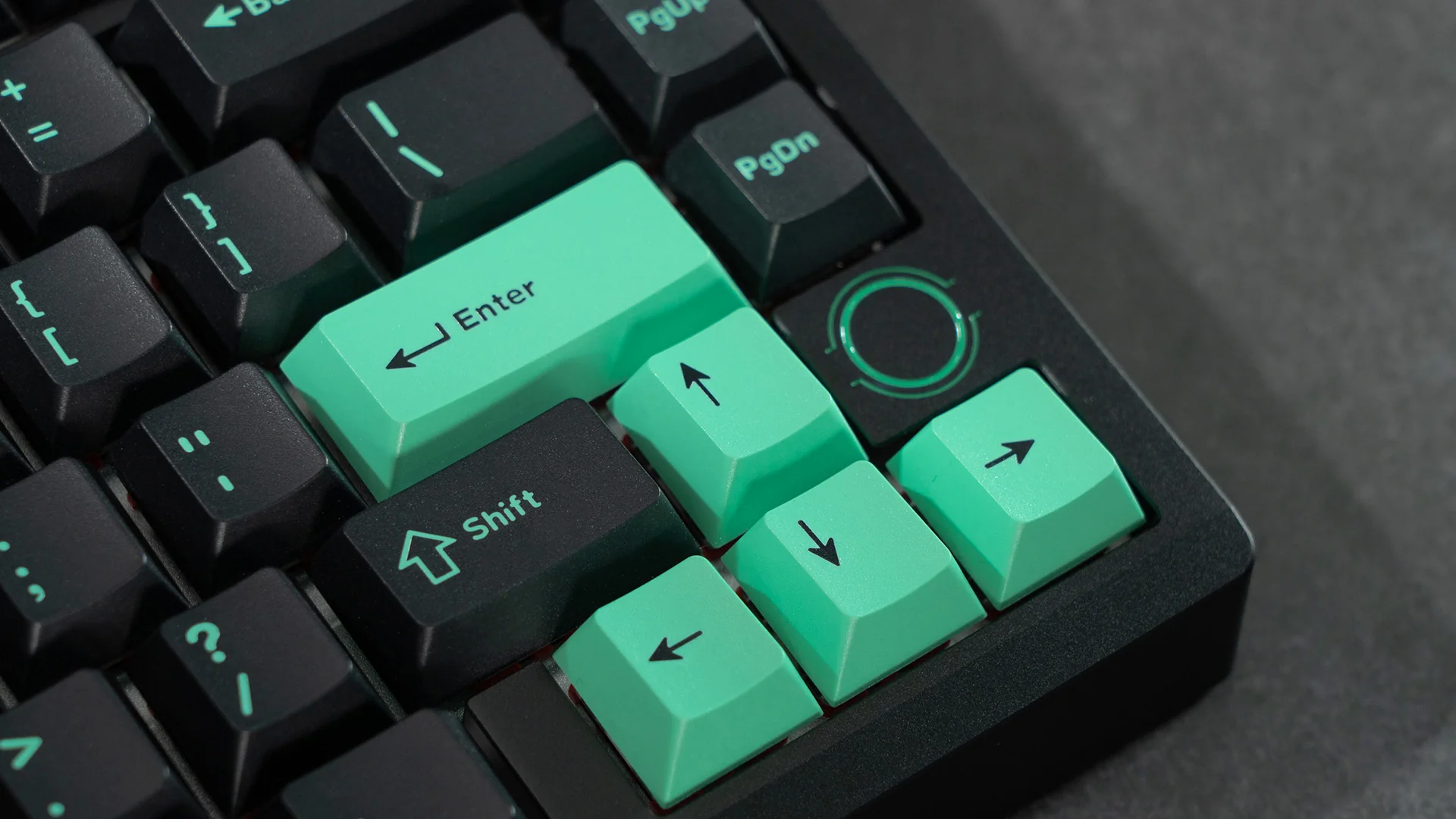

Keycap Specifications:

• Manufacturer: WS PBT
• Keycap Material: Doubleshot PBT
• Keycap Thickness: 1.6mm
• Keycap Profile: Cherry
• Keys QTY: 81 keys

Switch Specifications:

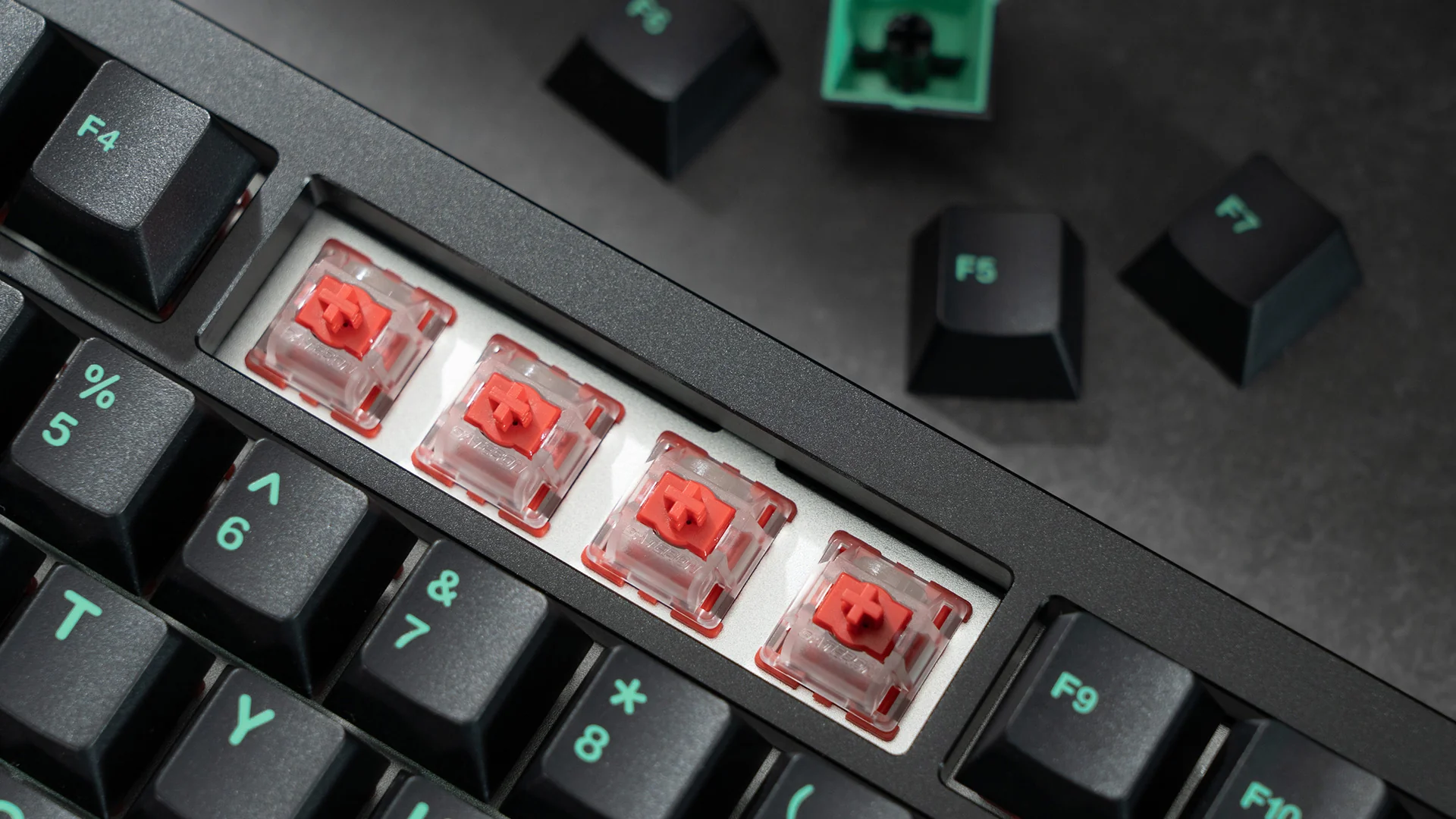

• Product Name: GATERON KS-37B Magnetic Hall Sensor Keyboard Switch
• Initial Force:30±10gf.
• Total travel:4.0±0.2mm.
• Operation Lifetime:150,000,000 Cycles.
• Bottom Force: 50±10gf.
• Top Housing Material: Thermoplastic, Transparent
• Bottom Housing Material: Thermoplastic, Red
• Stem Material: Thermoplastic, Red
• Spring Material: Stainless steel

Highlights:

• Dual-rail structure for stability.
• Square magnet design, with freely adjustable magnetic pole orientation. Supports multi-directional Hall effect sensing.
• Extending the stem for better switch stability.
• Integrated spotlight lens design, enhancing light guidance.
• Every switch features a very tight housing and a very good coat of factory lube. No need to spend hours and hours lubing switches, they are good to go off the pack!

Kit Contents:

Fully Assembled Keyboard, including:

1. Top and bottom cases
2. HE Module(Magnetic Switch, Plate, Gasket, Sound absorbing foam, and PCB)
3. The themed keycaps
4. Tool accessories

Disclaimer of Stabs

• In the case of mass production, we will lubricate the stabilizer manually to a degree that is better than factory-lubed. However, if an individual pursues an exceptionally perfect tactile experience, he or she will need to lubricate it manually a second time. This is within the acceptable range of quality without affecting the functionality of the keyboard.
